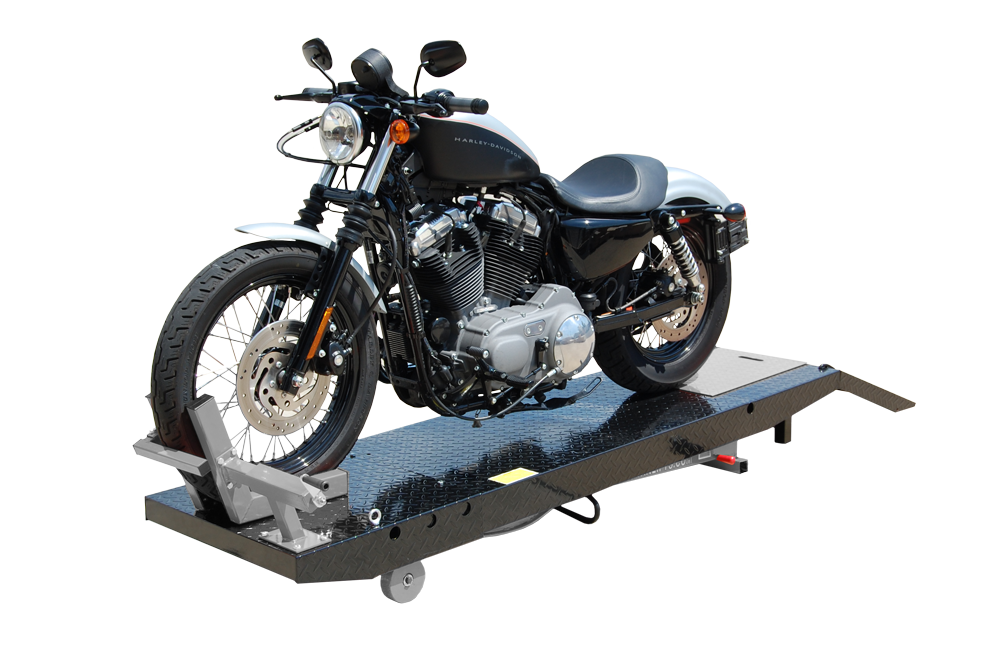

Titan SDML-1000D Motorcycle Lift

The heavy-duty diamond plated Titan 1000D is an air powered lift table that has a 1,000 lb. lifting capacity and an extra long working table so that even your longest motorcycle won't have a problem fitting on the 99" work space. With a max lifting height of 33", the 1000D is a perfect addition to any shop or home garage. Choose between two different powder coating color schemes of Black & Grey or Black & Orange.

INCLUDES

• Front Wheel Vise

• Multi-Positional Front Table Extension

• Standard Rear Wheel Drop Out

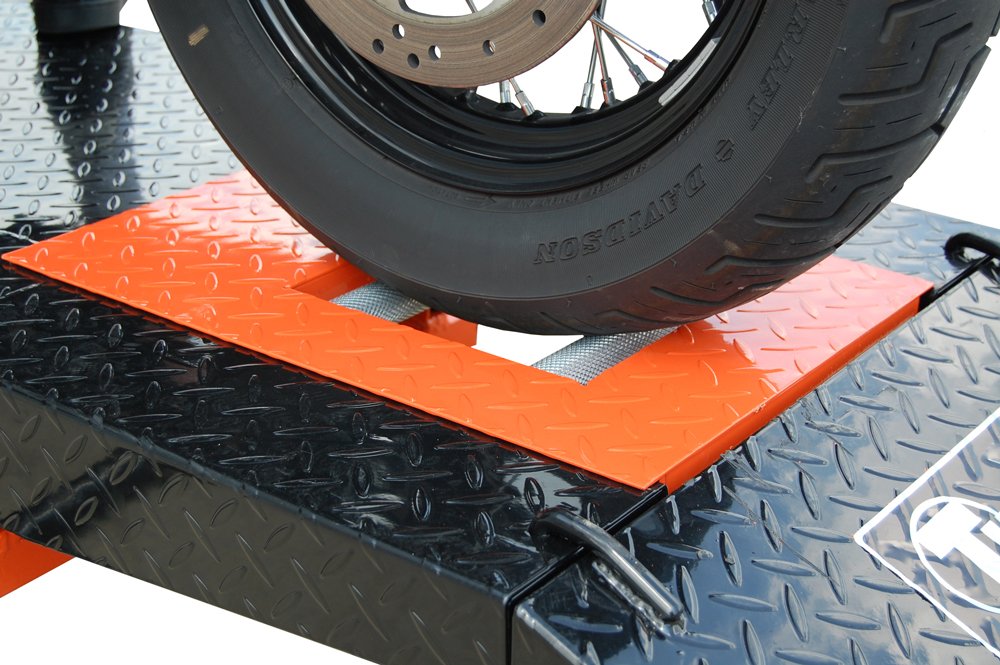

• Roller Plate Drop Out

• Standard Detachable Ramp

• Extended Ramp

• Air Powered Lift Controls

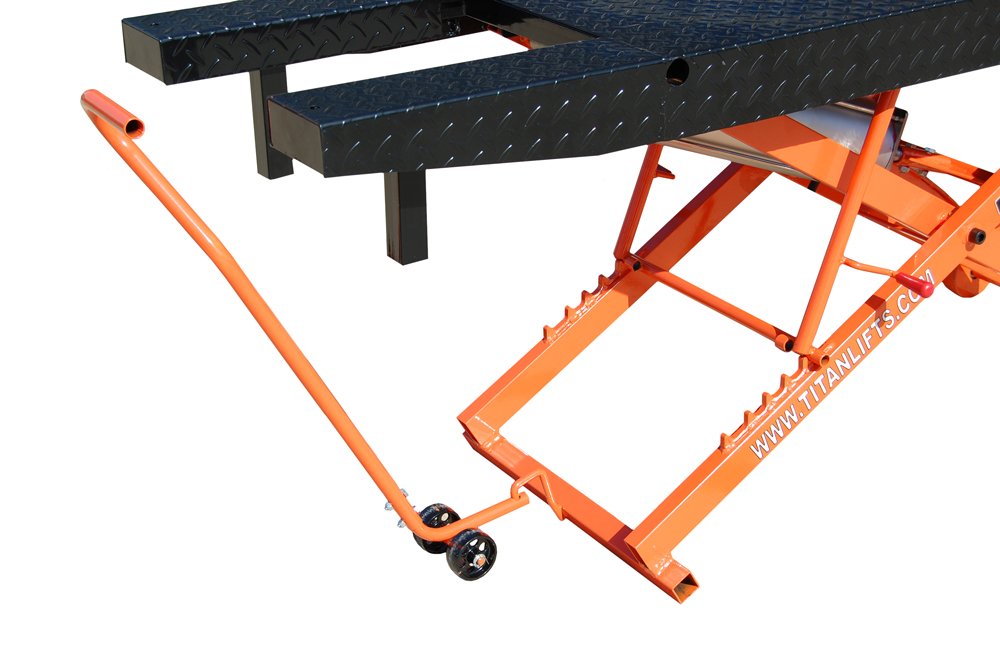

• Two Wheeled Dolly

**Does NOT include stabilizer bar**

Locking Heights

Lock Position 125.25"Lock Position 430.25"Lock Position 227.25"Lock Position 531.75"Lock Position 328.75"

Dimensions

Length w/Front Extension (Position 1)99"Length w/Front Extension (Position 1) & Ramp120"Length w/Front Extension (Position 2)94.5"Length w/Front Extension (Position 2) & Ramp114.5"Length w/Front Extension (Position 3)89.5"Length w/Front Extension (Position 3) & Ramp109.5"

SPECIFICATIONS

Front Extension24.5" x 23.75"

Table Length87.5" - 99"

Table Width24"

Lowered Height8"

Rise Height33"Lifting Capacity1,000 lbPower TypeAir OnlyPower Spec90 - 110 PSI
